Charger
Adapter and industrial charger designs still rely heavily on Schottky and fast-recovery diodes in PFC, output rectification and snubber networks. Low MOQ and fast samples help new SKUs qualify quickly.
- Fit-for-purposeMatch voltage, current and package to Charger
- Low lossLower conduction and switching loss for efficiency targets
- ReliabilityHigh-temperature and long-term reliability for industrial duty
- DeliveryDatasheets, catalog samples (~48h) and FAE support
What Charger power stages need
MHCHXM catalog types support common footprints for programs with a reliable supplier. Compare VF, IR and package thermal resistance against your incumbent, then request catalog samples (about 48h) and FAE review for export or EMS builds.

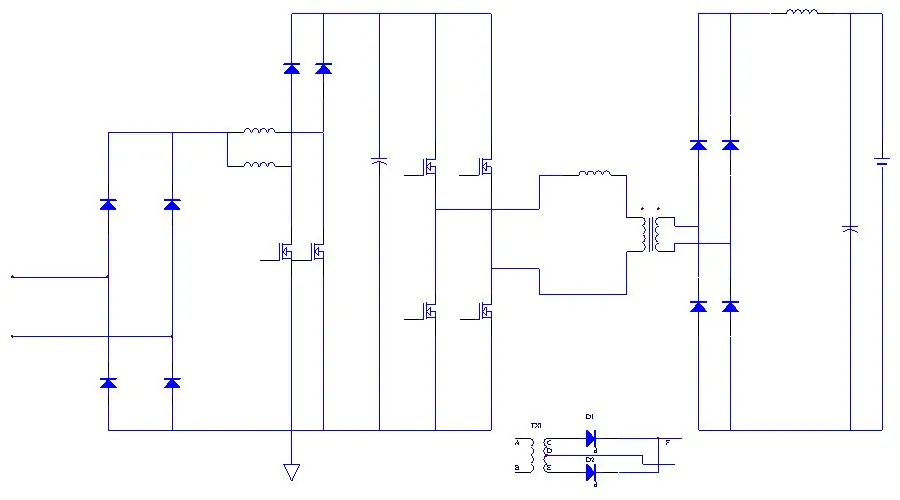

Typical application topology
Recommended catalog
0 of 33 parts link to the MHCHXM catalog.
| Model | VDS (V) | Rdson@18V Typ（mΩ） | 封装形式 | Actions |
|---|---|---|---|---|
| HXMC65N100P3 | 650 | 100 | TO-247AB | Quote |
| HXMC65N90P1 | 650 | 90 | TO-247AB | Quote |
| HXMC65N70P1 | 650 | 70 | TO-247AB | Quote |
| HXMC65N40P3 | 650 | 40 | TO-247AB | Quote |
| HXMC65N20P1 | 650 | 20 | TO-247AB | Quote |
| HXMC65N70T1 | 650 | 70 | TOLL-8L | Quote |
| HXMC65N40T3 | 650 | 40 | TOLL-8L | Quote |
| HXMC65N20T1 | 650 | 20 | TOLL-8L | Quote |
| Model | VRRM (V) | IF (A) | VF(V) | 封装形式 | Actions |
|---|---|---|---|---|---|
| MBR30200FCT | 200 | 30 | 0.9 | ITO-220AB | Quote |
| MBR30200PT | 200 | 30 | 0.9 | TO-247AB | Quote |
| MBR60150CD | 150 | 60 | 0.85 | TO-263-2L | Quote |
| MBR60150PT | 150 | 60 | 0.88 | TO-247AB | Quote |
| MBR80H150PT | 150 | 80 | 0.93 | TO-247AB | Quote |
| MBR100H150PT | 150 | 100 | 0.92 | TO-247AB | Quote |
| MBR80H200PT | 200 | 80 | 0.93 | TO-247AB | Quote |
| MBR100H200PT | 200 | 100 | 0.9 | TO-247AB | Quote |
| Model | VRRM (V) | IF (A) | VF(V) | 封装形式 | Actions |
|---|---|---|---|---|---|
| ECR1065A | 650 | 10 | 1.5 | TO-220AC-A | Quote |
| ECR1565A | 650 | 15 | 1.55 | TO-220AC-A | Quote |
| ECR2065A | 650 | 20 | 1.5 | TO-220AC-A | Quote |
| ECR3065A | 650 | 30 | 1.5 | TO-220AC-A | Quote |
| ECR4065A | 650 | 40 | 1.5 | TO-220AC-A | Quote |
| ECRP2065A | 650 | 20 | 1.5 | TO-247AC-A | Quote |
| ECRP3065A | 650 | 30 | 1.5 | TO-247AC-A | Quote |
| ECRP4065A | 650 | 40 | 1.5 | TO-247AC-A | Quote |
| ECR2065PT | 650 | 20 | 1.5 | TO-247AB | Quote |
| ECR3065PT | 650 | 30 | 1.5 | TO-247AB | Quote |
| ECR4065PT | 650 | 40 | 1.5 | TO-247AB | Quote |
Design-in support for Charger
Map topology to catalog parts, request samples and lock AVL with MHCHXM FAE.
Frequently asked questions
Which MHCHXM devices are used in Charger?
MHCHXM recommends Schottky, FRD, MOSFET or SiC devices matched to the Charger power stage. See recommended models on this page or contact FAE for a shortlist.
How does MHCHXM help select devices for Charger?
Share voltage, current, package and thermal limits. FAE proposes catalog or customized Schottky, FRD, MOSFET or SiC options matched to the Charger power stage.
How fast can I get samples for Charger projects?
Catalog samples for Charger-related parts are typically prepared within about 48 hours after stock and specification confirmation.
How do I contact FAE for Charger design-in?
Use the Contact form with stage Design-in, or reach the Ningbo overseas office for international programs. Typical reply is within 24 hours.
Find parts for this application
Browse MHCHXM catalog models suited to Charger, then open each datasheet for details.
