PV Inverter
Photovoltaic inverters convert DC from solar strings into grid-tied or off-grid AC. As power levels rise and enclosures stay compact, designers move to higher switching frequency and wide-bandgap devices to cut magnetic size and improve efficiency.
- Fit-for-purposeMatch voltage, current and package to PV Inverter
- Low lossLower conduction and switching loss for efficiency targets
- ReliabilityHigh-temperature and long-term reliability for industrial duty
- DeliveryDatasheets, catalog samples (~48h) and FAE support
What PV Inverter power stages need
String inverters use boost stages (sometimes with SiC diodes), full-bridge or multi-level inverters, and anti-parallel / bypass diodes rated for outdoor thermal swing. Micro-inverters add even tighter size constraints. Selection focuses on VRRM, IF(AV), trr and Qrr (for silicon FRD), VF versus temperature, and avalanche/surge behavior under partial shading events.
MHCHXM offers 650 V and 1200 V class SiC Schottky diodes with surge performance suited to PV boost and inverter legs, alongside FRD and MOSFET catalog lines. We support global inverter OEMs with datasheet-aligned reliable supplier evaluation — compare dynamic parameters, not logos — and catalog samples in about 48 hours. Wuxi manufacturing; international sales through Ningbo overseas desk.

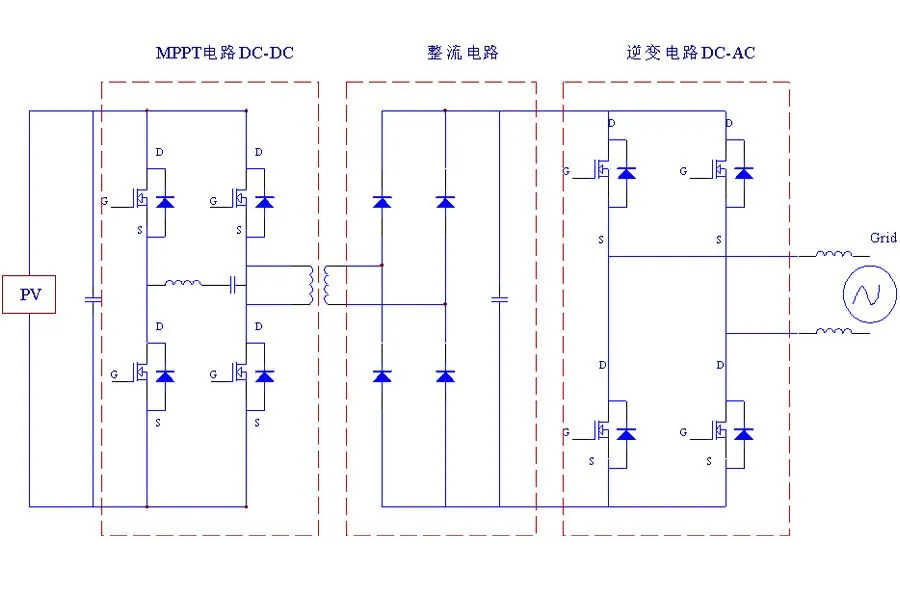

Typical application topology
Recommended catalog
0 of 30 parts link to the MHCHXM catalog.
| Model | VDS (V) | Rdson Max（mΩ） | Package | Actions |
|---|---|---|---|---|
| HXMH60M99EF | 600 | 99 | ITO-220AB | Quote |
| HXMH60M99EP | 600 | 99 | TO-247AB | Quote |
| HXMH60M70EP | 600 | 70 | TO-247AB | Quote |
| HXMH60M40EP | 600 | 40 | TO-247AB | Quote |
| HXMH60M28EP | 600 | 28 | TO-247AB | Quote |
| HXMH60M75P | 600 | 75 | TO-247AB | Quote |
| HXMH60M30P | 600 | 30 | TO-247AB | Quote |
| Model | VRRM (V) | IF (A) | Trr（ns） | VF(V) | Package | Actions |
|---|---|---|---|---|---|---|
| SFP3006A | 600 | 30 | 50 | 1.55 | TO-247AC-A | Quote |
| SFP3012A | 1200 | 30 | 75 | 2.4 | TO-247AC-A | Quote |
| SFP6006A | 600 | 60 | 70 | 1.7 | TO-247AC-A | Quote |
| SFP6012A | 1200 | 60 | 100 | 3.5 | TO-247AC-A | Quote |
| SFP6003 | 300 | 60 | 50 | 1.15 | TO-247AB | Quote |
| SFP6004 | 400 | 60 | 50 | 1.4 | TO-247AB | Quote |
| SFP6006 | 600 | 60 | 50 | 1.6 | TO-247AB | Quote |
| Model | VRRM (V) | IF (A) | VF(V) | Package | Actions |
|---|---|---|---|---|---|
| ECR465A | 650 | 4 | 1.5 | TO-220AC-A | Quote |
| ECR665A | 650 | 6 | 1.5 | TO-220AC-A | Quote |
| ECR865A | 650 | 8 | 1.5 | TO-220AC-A | Quote |
| ECR1065A | 650 | 10 | 1.5 | TO-220AC-A | Quote |
| ECRP1065A | 650 | 10 | 1.5 | TO-247AC-A | Quote |
| ECR2065A | 650 | 20 | 1.5 | TO-220AC-A | Quote |
| ECR5120ACS | 1200 | 5 | 1.8 | TO-252-2L | Quote |
| ECR5120A | 1200 | 5 | 1.8 | TO-220AC-A | Quote |
| ERC10120A | 1200 | 10 | 1.8 | TO-220AC-A | Quote |
| ECRP10120A | 1200 | 10 | 1.8 | TO-247AC-A | Quote |
| ECRP15120A | 1200 | 15 | 1.8 | TO-247AC-A | Quote |
| ECRP20120A | 1200 | 20 | 1.8 | TO-247AC-A | Quote |
| ECRP30120A | 1200 | 30 | 1.8 | TO-247AC-A | Quote |
| ECR20120PT | 1200 | 20 | 1.8 | TO-247AB | Quote |
| ECR30120PT | 1200 | 30 | 1.8 | TO-247AB | Quote |
| ECR40120PT | 1200 | 40 | 1.8 | TO-247AB | Quote |
Design-in support for PV Inverter
Map topology to catalog parts, request samples and lock AVL with MHCHXM FAE.
