UPS Power Supply
An uninterruptible power supply (UPS) keeps critical IT and industrial loads online when the grid fails. Modern data-center UPS designs push higher switching frequency, tighter power factor and smaller magnetics — which raises stress on every power switch in the PFC boost and inverter legs.
- Fit-for-purposeMatch voltage, current and package to UPS Power Supply
- Low lossLower conduction and switching loss for efficiency targets
- ReliabilityHigh-temperature and long-term reliability for industrial duty
- DeliveryDatasheets, catalog samples (~48h) and FAE support
What UPS Power Supply power stages need
Typical UPS power stages need low-loss 600–650 V super-junction MOSFETs for the high-frequency bridge, fast-recovery diodes (FRD) for auxiliary and clamp nodes, and increasingly 650 V / 1200 V SiC Schottky diodes where reverse-recovery charge (Qrr) would otherwise heat the silicon switch and worsen EMI. Thermal cycling, surge tolerance and long-term reliability matter as much as datasheet Vds and Id ratings.
MHCHXM manufactures power semiconductors in Wuxi with particular strength in Schottky and fast-recovery families. For UPS programs we map SJ MOSFET, FRD and SiC diode candidates by voltage class, package (TO-220, TO-247, module) and dynamic parameters — supporting global OEM reliable supplier evaluation without publishing competitor brand tables. Catalog samples are typically prepared within about 48 hours after confirmation; FAE reply within 24 hours on business days. Overseas buyers can reach the Ningbo desk (Mr. Albert Hong) for export quotes and design-in documentation.

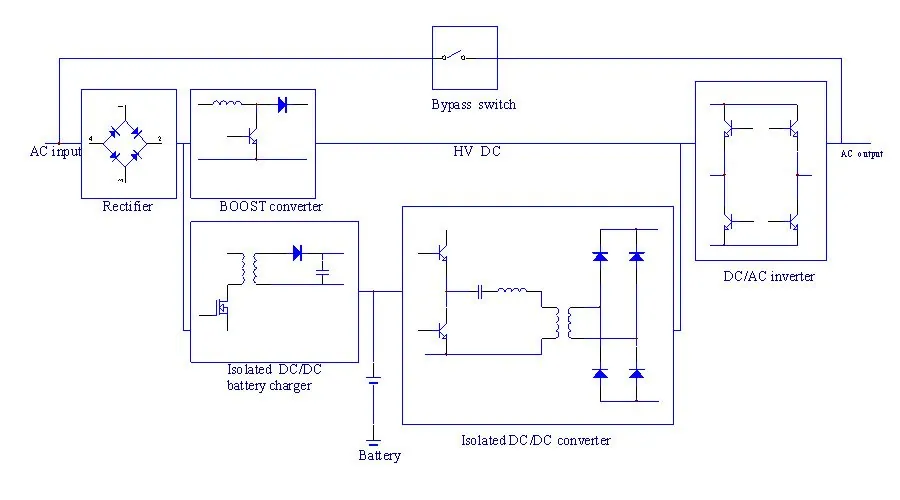

Typical application topology
Recommended catalog
0 of 33 parts link to the MHCHXM catalog.
| Model | VDS (V) | Rdson Max（mΩ） | Package | Actions |
|---|---|---|---|---|
| HXMH65M600EF | 650 | 600 | ITO-220AB | Quote |
| HXMH65M600ES | 650 | 600 | TO-252-2L | Quote |
| HXMH60M75P | 600 | 75 | TO-247AB | Quote |
| HXMH60M105P | 600 | 105 | TO-247AB | Quote |
| HXMH60M99EP | 600 | 99 | TO-247AB | Quote |
| HXMH60M70EP | 600 | 70 | TO-247AB | Quote |
| Model | VRRM (V) | IF (A) | Trr（ns） | VF(V) | Package | Actions |
|---|---|---|---|---|---|---|
| SFP6004 | 400 | 60 | 50 | 1.4 | TO-247AB | Quote |
| SFP6003 | 300 | 60 | 50 | 1.15 | TO-247AB | Quote |
| SFP60H06A | 600 | 70 | 40 | 2.3 | TO-247AC-A | Quote |
| SFP30H06A | 600 | 30 | 40 | 2.3 | TO-247AC-A | Quote |
| SFP6006A | 600 | 60 | 70 | 1.7 | TO-247AC-A | Quote |
| SFP3006A | 600 | 30 | 40 | 1.55 | TO-247AC-A | Quote |
| SF806A | 600 | 8 | 35 | 1.6 | TO-220AC-A | Quote |
| SF1006A | 600 | 10 | 35 | 1.7 | TO-220AC-A | Quote |
| SF1506A | 600 | 15 | 35 | 1.7 | TO-220AC-A | Quote |
| SFF806A | 600 | 8 | 35 | 1.55 | ITO-220AC | Quote |
| SFF1006A | 600 | 10 | 35 | 1.7 | ITO-220AC | Quote |
| SFF1506A | 600 | 15 | 35 | 1.6 | ITO-220AC | Quote |
| SF8H06A | 600 | 8 | 25 | 3.5 | TO-220AC | Quote |
| SF10H06A | 600 | 10 | 25 | 2.8 | TO-220AC | Quote |
| SF15H06A | 600 | 15 | 25 | 2.5 | TO-220AC | Quote |
| SFF8H06A | 600 | 8 | 25 | 2.3 | ITO-220AC | Quote |
| SFF10H06A | 600 | 10 | 25 | 2.8 | ITO-220AC | Quote |
| SFF15H06A | 600 | 15 | 30 | 2.3 | ITO-220AC | Quote |
| Model | VRRM (V) | IF (A) | VF(V) | Package | Actions |
|---|---|---|---|---|---|
| ECR865A | 650 | 8 | 1.5 | TO-220AC-A | Quote |
| ECR1065A | 650 | 10 | 1.5 | TO-220AC-A | Quote |
| ECR1565A | 650 | 15 | 1.55 | TO-220AC-A | Quote |
| ECR2065A | 650 | 20 | 1.5 | TO-220AC-A | Quote |
| ECR2065PT | 650 | 20 | 1.5 | TO-247AB | Quote |
| ECR3065PT | 650 | 30 | 1.5 | TO-247AB | Quote |
| ECR4065PT | 650 | 40 | 1.5 | TO-247AB | Quote |
| ECR20120PT | 1200 | 20 | 1.8 | TO-247AB | Quote |
| ECRP40120A | 1200 | 40 | 1.8 | TO-247AC-A | Quote |
