Inverter Welding Machine
Inverter welding machines generate a controlled arc from a high-frequency power stage that runs long duty cycles at elevated temperature. Rectifier and switch stress includes surge currents and hard switching events.
- Fit-for-purposeMatch voltage, current and package to Inverter Welding Machine
- Low lossLower conduction and switching loss for efficiency targets
- ReliabilityHigh-temperature and long-term reliability for industrial duty
- DeliveryDatasheets, catalog samples (~48h) and FAE support
What Inverter Welding Machine power stages need
MHCHXM FRD, Schottky and SiC devices are mapped to inverter and output rectifier functions with emphasis on IFSM, thermal resistance and trr behavior. FAE supports bench validation and reliable supplier documentation for industrial welder OEMs.

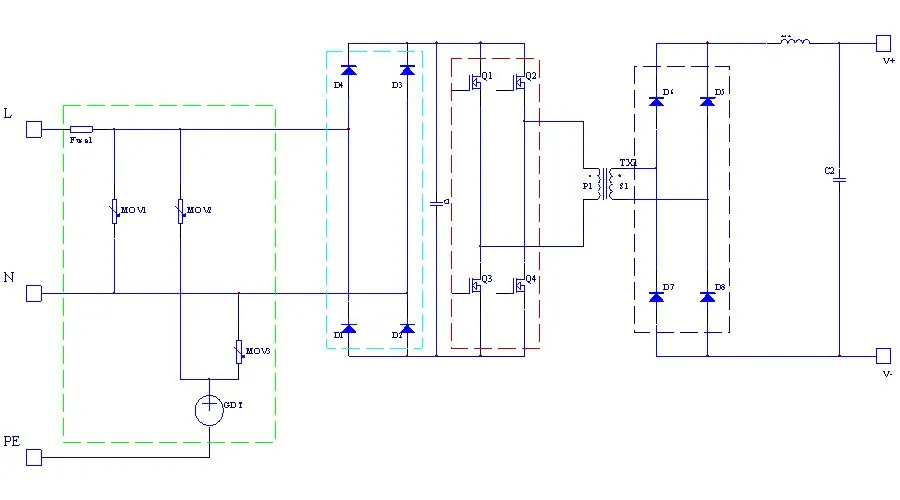

Typical application topology
Recommended catalog
0 of 18 parts link to the MHCHXM catalog.
| Model | VRRM (V) | IF (A) | Trr（ns） | VF(V) | Package | Actions |
|---|---|---|---|---|---|---|
| SF806A | 600 | 8 | 35 | 1.6 | TO-220AC-A | Quote |
| SF3006 | 600 | 30 | 35 | 1.7 | TO-220AB | Quote |
| SFP3002 | 200 | 30 | 35 | 1.02 | TO-247AB | Quote |
| SFP3004 | 400 | 30 | 35 | 1.5 | TO-247AB | Quote |
| SFP3006 | 600 | 30 | 35 | 1.7 | TO-247AB | Quote |
| SFP6002 | 200 | 60 | 50 | 1 | TO-247AB | Quote |
| SFP6004 | 400 | 60 | 50 | 1.4 | TO-247AB | Quote |
| SFP6006 | 600 | 60 | 50 | 1.6 | TO-247AB | Quote |
| SFP8004 | 400 | 80 | 50 | 1.35 | TO-247AB | Quote |
| Model | VRRM (V) | IF (A) | VF(V) | Package | Actions |
|---|---|---|---|---|---|
| EBR20LH150FCT | 150 | 20 | 0.91 | ITO-220AB | Quote |
| EBR20LH200FCT | 200 | 20 | 1.03 | ITO-220AB | Quote |
| EBR30LH150FCT | 150 | 30 | 0.9 | ITO-220AB | Quote |
| EBR30LH200FCT | 200 | 30 | 0.93 | ITO-220AB | Quote |
| Model | VRRM (V) | IF (A) | VF(V) | Package | Actions |
|---|---|---|---|---|---|
| ECRP3065PT | 650 | 30 | 1.5 | TO-247AB | Quote |
| ECR4065PT | 650 | 40 | 1.5 | TO-247AB | Quote |
| ECR6065PT | 650 | 60 | 1.5 | TO-247AB | Quote |
| ECRP20120A | 1200 | 20 | 1.8 | TO-247AC-A | Quote |
| ECRP30120A | 1200 | 30 | 1.8 | TO-247AC-A | Quote |
Design-in support for Inverter Welding Machine
Map topology to catalog parts, request samples and lock AVL with MHCHXM FAE.
Frequently asked questions
Which MHCHXM devices are used in Inverter Welding Machine?
MHCHXM recommends Schottky, FRD, MOSFET or SiC devices matched to the Inverter Welding Machine power stage. See recommended models on this page or contact FAE for a shortlist.
How does MHCHXM help select devices for Inverter Welding Machine?
Share voltage, current, package and thermal limits. FAE proposes catalog or customized Schottky, FRD, MOSFET or SiC options matched to the Inverter Welding Machine power stage.
How fast can I get samples for Inverter Welding Machine projects?
Catalog samples for Inverter Welding Machine-related parts are typically prepared within about 48 hours after stock and specification confirmation.
How do I contact FAE for Inverter Welding Machine design-in?
Use the Contact form with stage Design-in, or reach the Ningbo overseas office for international programs. Typical reply is within 24 hours.
Find parts for this application
Browse MHCHXM catalog models suited to Inverter Welding Machine, then open each datasheet for details.
