Server Power Supply
Server and telecom power supplies must deliver high efficiency across a wide load range while meeting strict safety, EMI and form-factor rules. Platinum and titanium efficiency targets push designers toward low-Vf output rectifiers and low-Rdson synchronous switches.
- Fit-for-purposeMatch voltage, current and package to Server Power Supply
- Low lossLower conduction and switching loss for efficiency targets
- ReliabilityHigh-temperature and long-term reliability for industrial duty
- DeliveryDatasheets, catalog samples (~48h) and FAE support
What Server Power Supply power stages need
Typical stages include PFC boost, intermediate bus conversion and point-of-load regulators. Schottky and FRD diodes appear in output rectification, OR-ing and snubber networks; MOSFETs dominate synchronous rectification and DC/DC. Because server PSUs ship in high volume, reliable supplier supply and stable pricing are as important as electrical fit.
MHCHXM provides low-Vf Schottky rectifiers and MOSFET options aligned to common server PSU footprints (TO-220, D²PAK, PowerPAK). FAE supports programs with a reliable supplier by overlaying VF, IR, Rdson and thermal data against your incumbent BOM. Request quotes and catalog samples through the contact form — typical FAE reply within 24 hours, samples about 48 hours after confirmation. Export programs: Ningbo overseas sales.

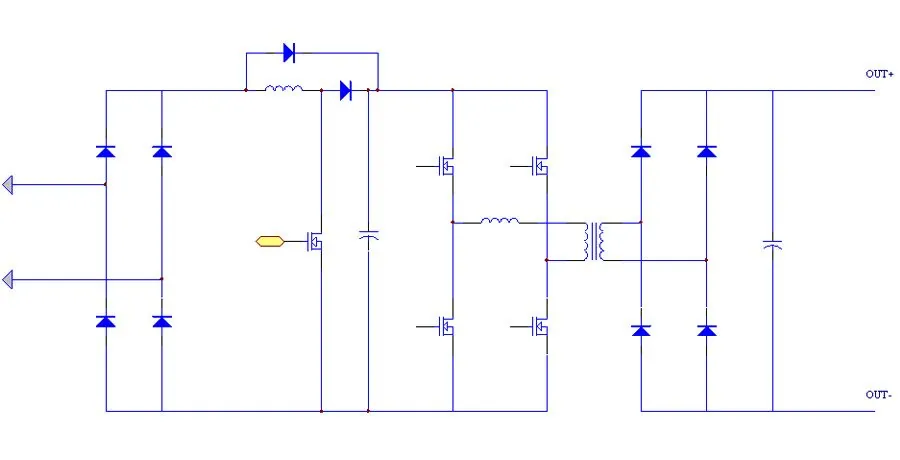

Typical application topology
Recommended catalog
0 of 15 parts link to the MHCHXM catalog.
| Model | VDS (V) | Rdson Max（mΩ） | Package | Actions |
|---|---|---|---|---|
| HXMH60M30P | 600 | 30 | TO-247AB | Quote |
| HXMH60M43P | 600 | 43 | TO-247AB | Quote |
| HXMH60M75P | 600 | 75 | TO-247AB | Quote |
| HXMH60M105P | 600 | 105 | TO-247AB | Quote |
| HXMH60M180EF | 600 | 180 | ITO-220AB | Quote |
| HXMH60M180EH | 600 | 180 | TO-220AB | Quote |
| HXMH60M180ED | 600 | 180 | TO-263-2L | Quote |
| HXMH65M180EF | 650 | 180 | ITO-220AB | Quote |
| HXMH65M180EH | 650 | 180 | TO-220AB | Quote |
| HXMH65M180ED | 650 | 180 | TO-263-2L | Quote |
Design-in support for Server Power Supply
Map topology to catalog parts, request samples and lock AVL with MHCHXM FAE.
Frequently asked questions
Which MHCHXM devices are used in Server Power Supply?
MHCHXM recommends Schottky, FRD, MOSFET or SiC devices matched to the Server Power Supply power stage. See recommended models on this page or contact FAE for a shortlist.
How does MHCHXM help select devices for Server Power Supply?
Share voltage, current, package and thermal limits. FAE proposes catalog or customized Schottky, FRD, MOSFET or SiC options matched to the Server Power Supply power stage.
How fast can I get samples for Server Power Supply projects?
Catalog samples for Server Power Supply-related parts are typically prepared within about 48 hours after stock and specification confirmation.
How do I contact FAE for Server Power Supply design-in?
Use the Contact form with stage Design-in, or reach the Ningbo overseas office for international programs. Typical reply is within 24 hours.
