Stage Light Power Supply
Stage and entertainment lighting power supplies combine PFC with constant-current outputs. Designers balance efficiency, audible noise, EMI and compact heatsinking in often hot truss environments.
- Fit-for-purposeMatch voltage, current and package to Stage Light Power Supply
- Low lossLower conduction and switching loss for efficiency targets
- ReliabilityHigh-temperature and long-term reliability for industrial duty
- DeliveryDatasheets, catalog samples (~48h) and FAE support
What Stage Light Power Supply power stages need
MHCHXM Schottky, FRD and MOSFET catalog parts support PFC and output stages. Share your topology and thermal limits for a shortlist aligned to published datasheets — reliable supplier friendly, no competitor brand tables on public pages.

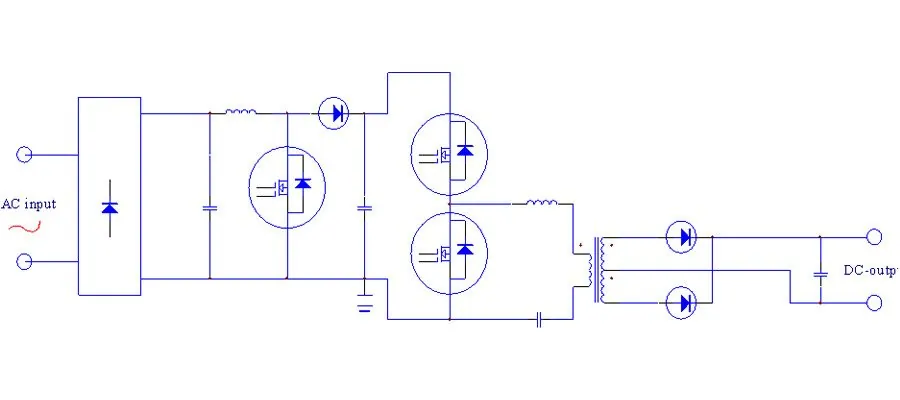

Typical application topology
Recommended catalog
0 of 40 parts link to the MHCHXM catalog.
| Model | VDS (V) | Rdson@18V Typ（mΩ） | 封装形式 | Actions |
|---|---|---|---|---|
| HXMC65N160F3 | 650 | 160 | ITO-220AB | Quote |
| HXMC65N130F1 | 650 | 130 | ITO-220AB | Quote |
| HXMC65N100F3 | 650 | 100 | ITO-220AB | Quote |
| HXMC65N90F1 | 650 | 90 | ITO-220AB | Quote |
| HXMC65N100P3 | 650 | 100 | TO-247AB | Quote |
| HXMC65N90P1 | 650 | 90 | TO-247AB | Quote |
| HXMC65N70P1 | 650 | 70 | TO-247AB | Quote |
| HXMC65N40P3 | 650 | 40 | TO-247AB | Quote |
| HXMC65N20P1 | 650 | 20 | TO-247AB | Quote |
| HXMC65N70T1 | 650 | 70 | TOLL-8L | Quote |
| HXMC65N40T3 | 650 | 40 | TOLL-8L | Quote |
| Model | VRRM (V) | IF (A) | Trr（ns） | VF(V) | 封装形式 | Actions |
|---|---|---|---|---|---|---|
| SF2006CS | 600 | 20 | 35 | 1.6 | TO-252-2L | Quote |
| SF2008CS | 800 | 20 | 35 | 2.5 | TO-252-2L | Quote |
| SFF1006A | 600 | 10 | 35 | 1.7 | ITO-220AC | Quote |
| SFF1606A | 600 | 16 | 35 | 1.75 | ITO-220AC | Quote |
| SFF2006 | 600 | 20 | 35 | 1.6 | ITO-220AB | Quote |
| SFF3006 | 600 | 30 | 35 | 1.7 | ITO-220AB | Quote |
| SFF2008 | 800 | 20 | 35 | 2.5 | ITO-220AB | Quote |
| SFP3006 | 600 | 30 | 35 | 1.7 | TO-247AB | Quote |
| Model | VRRM (V) | IF (A) | VF(V) | 封装形式 | Actions |
|---|---|---|---|---|---|
| MBR20150CT | 150 | 20 | 0.9 | TO-220AB | Quote |
| MBR20H200CT | 200 | 20 | 0.9 | TO-220AB | Quote |
| MBR30150CT | 150 | 30 | 0.9 | TO-220AB | Quote |
| MBR30200CT | 200 | 30 | 0.9 | TO-220AB | Quote |
| MBR30150CD | 150 | 30 | 0.9 | TO-263-2L | Quote |
| MBR30200CD | 200 | 30 | 0.9 | TO-263-2L | Quote |
| MBR40150CD | 150 | 40 | 0.9 | TO-263-2L | Quote |
| MBR40200CD | 200 | 40 | 0.9 | TO-263-2L | Quote |
| MBR30150PT | 150 | 30 | 0.9 | TO-247AB | Quote |
| MBR30200PT | 200 | 30 | 0.9 | TO-247AB | Quote |
| MBR30H300PT | 300 | 30 | 1 | TO-247AB | Quote |
| MBR40150PT | 150 | 40 | 0.9 | TO-247AB | Quote |
| MBR40200PT | 200 | 40 | 0.9 | TO-247AB | Quote |
| MBR60150PT | 150 | 60 | 0.88 | TO-247AB | Quote |
| MBR60200PT | 200 | 60 | 0.9 | TO-247AB | Quote |
| MBR60H250PT | 250 | 60 | 0.95 | TO-247AB | Quote |
| MBR60H300PT | 300 | 60 | 0.95 | TO-247AB | Quote |
Design-in support for Stage Light Power Supply
Map topology to catalog parts, request samples and lock AVL with MHCHXM FAE.
Frequently asked questions
Which MHCHXM devices are used in Stage Light Power Supply?
MHCHXM recommends Schottky, FRD, MOSFET or SiC devices matched to the Stage Light Power Supply power stage. See recommended models on this page or contact FAE for a shortlist.
How does MHCHXM help select devices for Stage Light Power Supply?
Share voltage, current, package and thermal limits. FAE proposes catalog or customized Schottky, FRD, MOSFET or SiC options matched to the Stage Light Power Supply power stage.
How fast can I get samples for Stage Light Power Supply projects?
Catalog samples for Stage Light Power Supply-related parts are typically prepared within about 48 hours after stock and specification confirmation.
How do I contact FAE for Stage Light Power Supply design-in?
Use the Contact form with stage Design-in, or reach the Ningbo overseas office for international programs. Typical reply is within 24 hours.
Find parts for this application
Browse MHCHXM catalog models suited to Stage Light Power Supply, then open each datasheet for details.
