LED Plant Lighting
Horticulture LED drivers run many hours per day at elevated case temperature. Output rectifier VF and thermal resistance dominate efficiency and lamp lifetime.
- Fit-for-purposeMatch voltage, current and package to LED Plant Lighting
- Low lossLower conduction and switching loss for efficiency targets
- ReliabilityHigh-temperature and long-term reliability for industrial duty
- DeliveryDatasheets, catalog samples (~48h) and FAE support
What LED Plant Lighting power stages need
MHCHXM low-Vf Schottky and high-Tj rectifiers reduce conduction loss in high-current LED power stages. Request FAE support for reliable supplier overlay and catalog samples (typical about 48 hours).

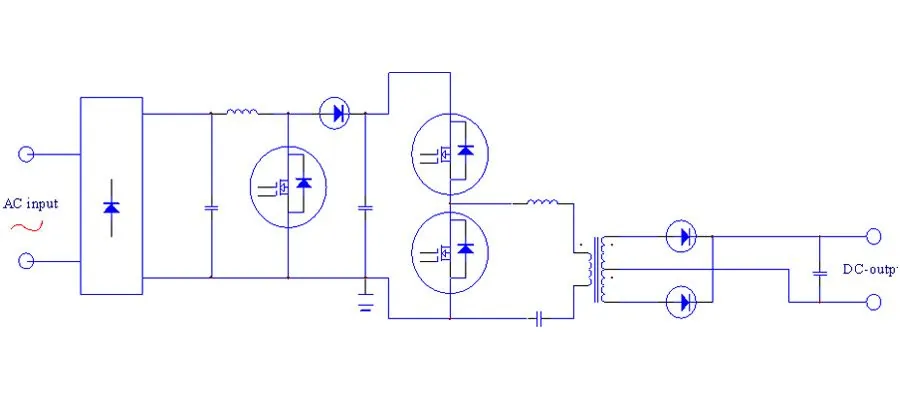

Typical application topology
Recommended catalog
0 of 34 parts link to the MHCHXM catalog.
| Model | VDS (V) | Rdson@18V Typ（mΩ） | 封装形式 | Actions |
|---|---|---|---|---|
| HXMC65N250F1 | 650 | 250 | ITO-220AB | Quote |
| HXMC65N190F1 | 650 | 190 | ITO-220AB | Quote |
| HXMC65N160F3 | 650 | 160 | ITO-220AB | Quote |
| HXMC65N130F1 | 650 | 130 | ITO-220AB | Quote |
| HXMC65N100F3 | 650 | 100 | ITO-220AB | Quote |
| HXMC65N90F1 | 650 | 90 | ITO-220AB | Quote |
| HXMC65N90P1 | 650 | 90 | TO-247AB | Quote |
| HXMC65N70P1 | 650 | 70 | TO-247AB | Quote |
| HXMC65N40P3 | 650 | 40 | TO-247AB | Quote |
| HXMC65N20P1 | 650 | 20 | TO-247AB | Quote |
| HXMC65N70T1 | 650 | 70 | TOLL-8L | Quote |
| HXMC65N40T3 | 650 | 40 | TOLL-8L | Quote |
| HXMC65N20T1 | 650 | 20 | TOLL-8L | Quote |
| Model | VRRM (V) | IF (A) | VF(V) | Package | Actions |
|---|---|---|---|---|---|
| MBR20150CT | 150 | 20 | 0.9 | TO-220AB | Quote |
| MBR20H200CT | 200 | 20 | 0.9 | TO-220AB | Quote |
| MBR30150CT | 150 | 30 | 0.9 | TO-220AB | Quote |
| MBR30200CT | 200 | 30 | 0.9 | TO-220AB | Quote |
| MBR30150CD | 150 | 30 | 0.9 | TO-263-2L | Quote |
| MBR30200CD | 200 | 30 | 0.9 | TO-263-2L | Quote |
| Model | VRRM (V) | IF (A) | VF(V) | Package | Actions |
|---|---|---|---|---|---|
| ECR665A | 650 | 6 | 1.5 | TO-220AC-A | Quote |
| ECR865A | 650 | 8 | 1.5 | TO-220AC-A | Quote |
| ECR1065A | 650 | 10 | 1.5 | TO-220AC-A | Quote |
| ECR1565A | 650 | 15 | 1.55 | TO-220AC-A | Quote |
| ECR2065A | 650 | 20 | 1.5 | TO-220AC-A | Quote |
| ECR5120A | 1200 | 5 | 1.8 | TO-220AC-A | Quote |
| ECR8120A | 1200 | 8 | 1.8 | TO-220AC-A | Quote |
| ECR10120A | 1200 | 10 | 1.8 | TO-220AC-A | Quote |
| ECR15120A | 1200 | 15 | 1.8 | TO-220AC-A | Quote |
Design-in support for LED Plant Lighting
Map topology to catalog parts, request samples and lock AVL with MHCHXM FAE.
Frequently asked questions
Which MHCHXM devices are used in LED Plant Lighting?
MHCHXM recommends Schottky, FRD, MOSFET or SiC devices matched to the LED Plant Lighting power stage. See recommended models on this page or contact FAE for a shortlist.
How does MHCHXM help select devices for LED Plant Lighting?
Share voltage, current, package and thermal limits. FAE proposes catalog or customized Schottky, FRD, MOSFET or SiC options matched to the LED Plant Lighting power stage.
How fast can I get samples for LED Plant Lighting projects?
Catalog samples for LED Plant Lighting-related parts are typically prepared within about 48 hours after stock and specification confirmation.
How do I contact FAE for LED Plant Lighting design-in?
Use the Contact form with stage Design-in, or reach the Ningbo overseas office for international programs. Typical reply is within 24 hours.
Find parts for this application
Browse MHCHXM catalog models suited to LED Plant Lighting, then open each datasheet for details.
