MHCHXM has released a 1700 V fast-recovery diode series for higher conversion efficiency in green-energy equipment.
Key advantages
| Advantage | What it means in the design |
|---|---|
| 1700 V blocking | More voltage margin in high-voltage stages, with steadier blocking. |
| High junction temperature | Holds up under continuous load. |
| High current rating | Fits high-power equipment and still works when the case runs hot. |
| Long-life construction | Industrial durability, so maintenance intervals can be longer. |
Applications
Typical positions are EV chargers, industrial power supplies, motor drives and inverters. Confirm the topology and the thermal limit on the datasheet before the part is locked.
Catalog
| Part | Package | VRRM (V) | IF (A) | IFSM (A) | Rated IF (A) | VF (V) | IR (µA) | trr (ns) | TJ max (°C) |
|---|---|---|---|---|---|---|---|---|---|
| SFP3017A | TO-247AC-A | 1700 | 30 | 240 | 30 | 2.8 | 10 | 140 | 175 |
| SFP6017A | TO-247AC-A | 1700 | 60 | 480 | 60 | 2.8 | 10 | 180 | 175 |
| SFP7517A | TO-247AC-A | 1700 | 75 | 500 | 75 | 2.8 | 10 | 200 | 175 |

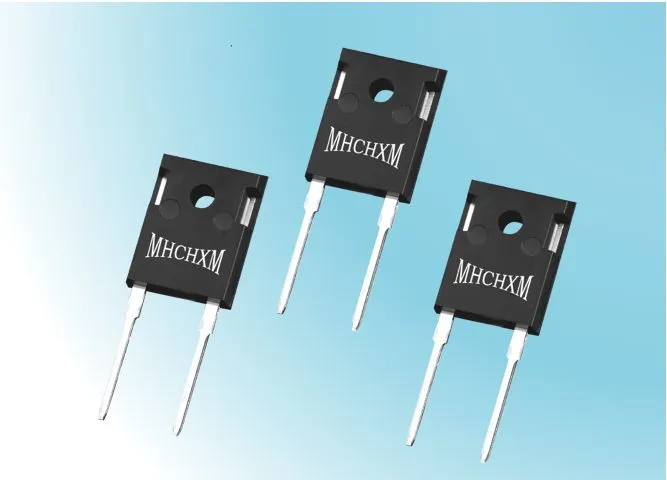

These three TO-247 devices are the current 1700 V recommendations for high-voltage, high-frequency supplies.
Beyond the parts above, the MHCHXM lineup also includes SiC diodes, MOSFETs, Schottky diodes, fast-recovery diodes and power transistors. The portfolio is refreshed on a regular cadence.
Samples and selection
Request datasheets or catalog samples via the sample / inquiry channel. Browse the product catalog or cross-reference tool.
