MHCHXM has released a 650 V FRD series from 8 A to 120 A. This generation combines low VF, fast trr and low noise at turn-off.
It is aimed at servers, base stations, PV inverters, motor drives and inverter air conditioners, where efficiency and power density are both required.
Characteristics
- Suited to high-frequency operation
- Soft recovery for better EMI
- Low reverse leakage
- High surge, low IR
- Reliable at high temperature
- Stronger EAS
Target applications
- Solar-inverter MPPT
- PFC in air conditioners, washers, TVs and refrigerators
- Secondary rectification in EV chargers
- Inverters for robots and compressors
- Server and base-station power
- UPS
Topology examples

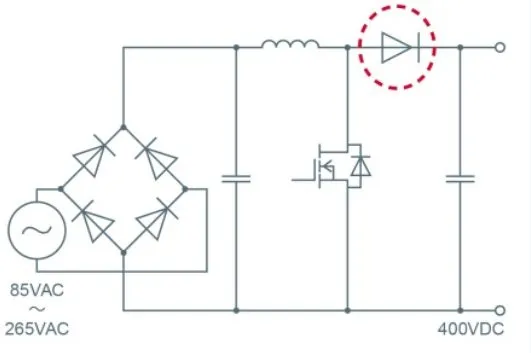

PFC stage

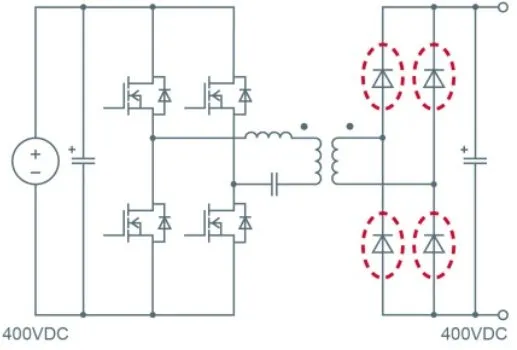

Secondary rectifier
Where it is used

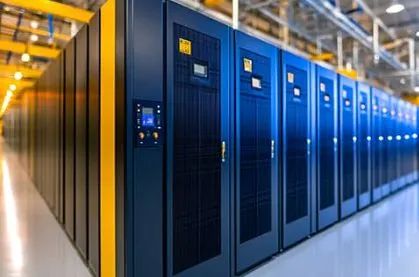

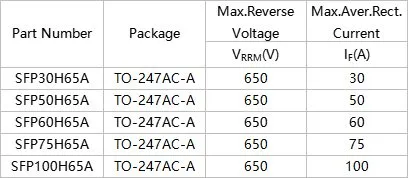

UPS

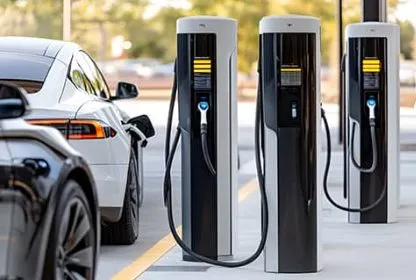

EV-charger secondary rectifier

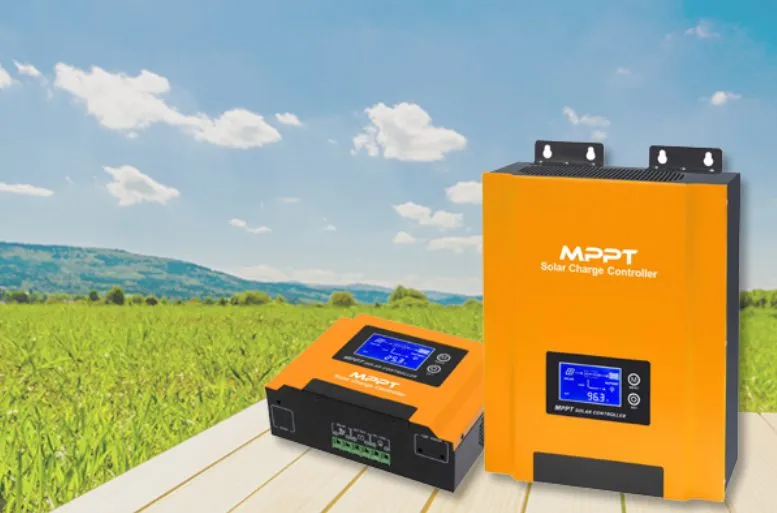

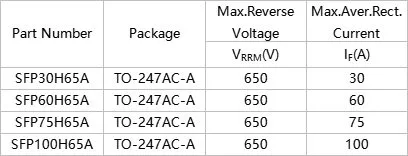

Solar-inverter MPPT
Catalog
| Part | Package | VRRM (V) | IF (A) |
|---|---|---|---|
| SF865A | TO-220AC-A | 650 | 8 |
| SF1565A | TO-220AC-A | 650 | 15 |
| SF2065A | TO-220AC-A | 650 | 20 |
| SF3065A | TO-220AC-A | 650 | 30 |
| SF865ACD | TO-263-2L | 650 | 8 |
| SF1565ACD | TO-263-2L | 650 | 15 |
| SF2065ACD | TO-263-2L | 650 | 20 |
| SF3065ACD | TO-263-2L | 650 | 30 |
| SFF865A | ITO-220AC | 650 | 8 |
| SFF1565A | ITO-220AC | 650 | 15 |
| SFF2065A | ITO-220AC | 650 | 20 |
| SFP3065A | TO-247AC-A | 650 | 30 |
| SFP4065A | TO-247AC-A | 650 | 40 |
| SFP5065A | TO-247AC-A | 650 | 50 |
| SFP6065A | TO-247AC-A | 650 | 60 |
| SFP7565A | TO-247AC-A | 650 | 75 |
| SFP8065 | TO-247AB | 650 | 80 |
| SFP100H65A | TO-247AC-A | 650 | 100 |
| SFPD100H65 | TO-247AB | 650 | 100 |
| SFPD120H65 | TO-247AB | 650 | 120 |
Beyond the parts above, the MHCHXM lineup also includes SiC diodes, MOSFETs, Schottky diodes, fast-recovery diodes and power transistors. The portfolio is refreshed on a regular cadence.
Samples and selection
Request datasheets or catalog samples via the sample / inquiry channel. Browse the product catalog or cross-reference tool.
