Where it is used
- Higher-speed vehicles, battery pack about 250 V to 800 V
- Lower-speed vehicles, battery pack about 30 V to 144 V

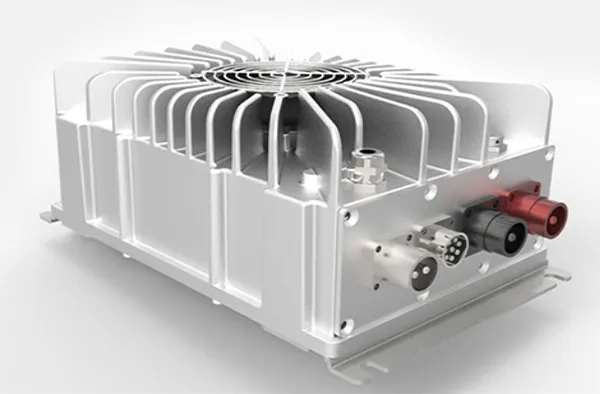

An on-board charger (OBC) turns AC mains into DC and charges the pack.

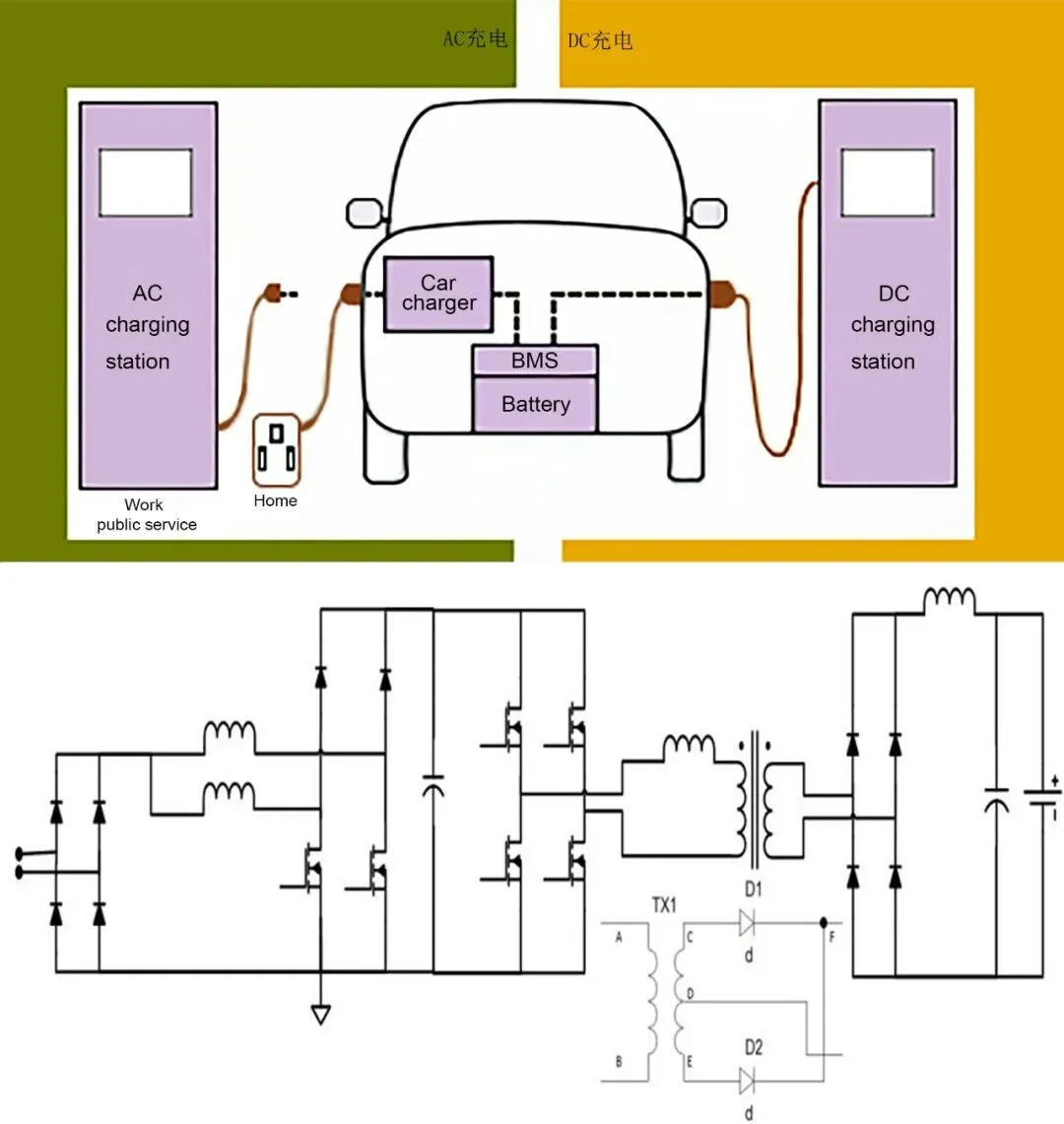

Power stage
The same devices are already used on new-energy vehicles, low- and mid-speed EVs, and site vehicles.
Recommended parts
| Part | VRRM (V) | IF (A) | Package |
|---|---|---|---|
| MBR60100CT | 100 | 60 | TO-220AB |
| EBR60L100CT | 100 | 60 | TO-220AB |
| SF1512A | 1200 | 15 | TO-220AC-A |
| MBR60150CD | 150 | 60 | TO-263-2L |
| MBR20C200CD | 200 | 20 | TO-263-2L |
| SF3002CD | 200 | 30 | TO-263-2L |
| EBR30V300CD | 300 | 30 | TO-263-2L |
| MBR30200FCT | 200 | 30 | ITO-220AB |
| SFP6003 | 300 | 60 | TO-247AB |
| SFP6004 | 400 | 60 | TO-247AB |
| MBR70C150PT | 150 | 70 | TO-247AB |
| MBR60150PT | 150 | 60 | TO-247AB |
| EBR60L100PT | 100 | 60 | TO-247AB |
| SFPD3006 | 600 | 30 | TO-247AB |
| SFP3003 | 300 | 30 | TO-247AB |
| SFP3006A | 600 | 30 | TO-247AC-A |
| SFP3012A | 1200 | 30 | TO-247AC-A |
Samples and selection
Request datasheets or catalog samples via the sample / inquiry channel. Browse the product catalog or cross-reference tool.
