Where it is used
An LCD-TV power system has three blocks:
- The supply unit
- The DC/AC inverter
- Signal processing
The supply unit is a PFC pre-regulator, a main DC/DC and a standby converter. It turns 85–265 V AC into 24 V, 12 V, 5 V and 3.3 V.
The 24 V or 12 V rail feeds the backlight inverter and the signal chain. The 5 V or 3.3 V standby rail feeds the standby circuits and the microcontroller.
The DC/AC inverter then turns 24 V or 12 V into a high AC voltage, on the order of 1200 V, for the backlight.

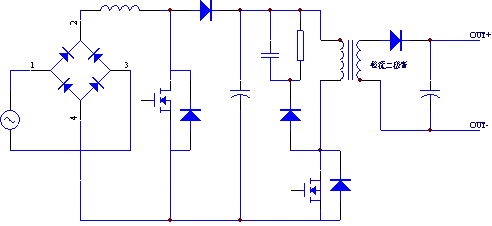

Power stage
Recommended parts
| Part | VRRM (V) | IF (A) | Package |
|---|---|---|---|
| MBR2045CT | 45 | 20 | TO-220AB |
| MBR3045CT | 45 | 30 | TO-220AB |
| EBR20L45CT | 45 | 20 | TO-220AB |
| EBR30L45CT | 45 | 30 | TO-220AB |
| MBR4045CT | 45 | 40 | TO-220AB |
| MBR3045PT | 45 | 30 | TO-247AB |
| MBR4045PT | 45 | 40 | TO-247AB |
| MBR20100CT | 100 | 20 | TO-220AB |
| EBR20L100CT | 100 | 20 | TO-220AB |
| MBR30100CT | 100 | 30 | TO-220AB |
| MBR40100CT | 100 | 40 | TO-220AB |
| MBR10200FCT | 200 | 10 | ITO-220AB |
| EBR20L200FCT | 200 | 20 | ITO-220AB |
| SR10100CS | 100 | 10 | TO-252-2L |
| SR20100CS | 100 | 20 | TO-252-2L |
| ER10L100CS | 100 | 10 | TO-252-2L |
| ER20L100CS | 100 | 20 | TO-252-2L |
