A bipolar junction transistor (BJT) is a current-controlled device. It amplifies a small signal, and it can also switch a load without a mechanical contact. Inside the die are the base (b), emitter (e) and collector (c). Polarity is either PNP or NPN.
Darlington pairs and audio power transistors are the two series MHCHXM is featuring.
- A Darlington is two transistors in one package. Gain is very high, so it can source or sink more current than a single small-signal BJT, and it is normally used as a driver.
Typical Darlington positions:
- High-power switches, motor speed control and inverters
- Small relay coils
- LED display panels
- The front end of a high-power amplifier
Audio power transistors handle more power at low noise, so they fit sound systems, amplifiers and speaker drivers.
Typical audio positions:
- Higher-end consumer audio
- Home amplifiers and receivers
- Professional amplifiers
- Theatre and stadium sound
- Public-address systems

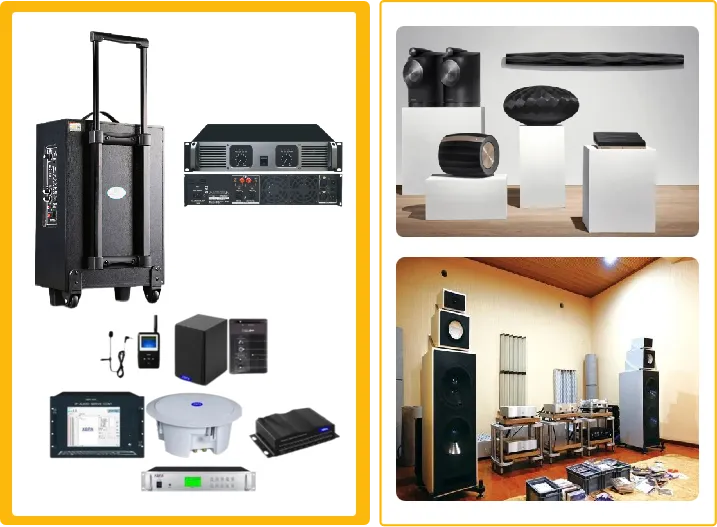

Applications
Selection table
| Part | Polarity | Type | Package | BVCBO (V) | BVCEO (V) | BVEB (V) | IC (A) | Operating (°C) |
|---|---|---|---|---|---|---|---|---|
| MJD127 | PNP | Darlington | TO-252-2L | -100 | -100 | -6 | 5 | 150 |
| MJD122S | NPN | Darlington | TO-252-2L | 100 | 100 | 5 | 4 | 150 |
| MJD122 | NPN | Darlington | TO-252-2L | 100 | 100 | 5 | 5 | 150 |
| MJD117 | PNP | Darlington | TO-252-2L | -100 | -100 | -6 | 5 | 150 |
| MJD31C | NPN | HF amplifier | TO-252-2L | 100 | 100 | 5 | 5 | 150 |
| MJD32C | PNP | HF amplifier | TO-252-2L | -100 | -100 | -5 | 5 | 150 |
| B772 | PNP | HF amplifier | TO-252-2L | -40 | -30 | -6 | 3 | 150 |
| 2SB1184 | PNP | Audio power | TO-252-2L | -60 | -60 | -5 | 3 | 150 |
| 2SB1412 | PNP | Audio power | TO-252-2L | -30 | -20 | -6 | 5 | 150 |
| TIP127 | PNP | Darlington | TO-220AB | -100 | -100 | -6 | 5 | 150 |
| TIP31C | NPN | HF amplifier | TO-220AB | 100 | 100 | 5 | 5 | 150 |
| TIP32C | PNP | HF amplifier | TO-220AB | -100 | -100 | -5 | 5 | 150 |
| TIP41C | NPN | HF amplifier | TO-220AB | 100 | 100 | 5 | 10 | 150 |
| TIP42C | PNP | HF amplifier | TO-220AB | -100 | -100 | -5 | 10 | 150 |
| TIP122 | NPN | Darlington | TO-220AB | 100 | 100 | 10 | 5 | 150 |
| 2SA1952 | PNP | HF amplifier | TO-220AB | -60 | -60 | -5 | 5 | 150 |
| 2SC5200 | NPN | Audio power | TO-3PL | 300 | 300 | 5 | 25 | 150 |
| 2SA1943 | PNP | Audio power | TO-3PL | -300 | -300 | -5 | -25 | 150 |
| NJW0281G | NPN | Audio power | TO-3PN | 250 | 250 | 5 | 15 | 150 |
| NJW0302G | PNP | Audio power | TO-3PN | -250 | -250 | -5 | -15 | 150 |
| NJW1302G | PNP | Audio power | TO-3PN | -250 | -250 | -5 | -15 | 150 |
| NJW3281G | NPN | Audio power | TO-3PN | 250 | 250 | 5 | 15 | 150 |
| 2SC5198 | NPN | Audio power | TO-3PN | 140 | 140 | 5 | 10 | 150 |
| 2SA1941 | PNP | Audio power | TO-3PN | -140 | -140 | -5 | -10 | 150 |
| 2SC3856 | NPN | Audio power | TO-3PN | 180 | 180 | 6 | 15 | 150 |
| 2SA1492 | PNP | Audio power | TO-3PN | -180 | -180 | -6 | -15 | 150 |
| TIP35C | NPN | Audio power | TO-3PN | 100 | 100 | 5 | 25 | 150 |
| TIP36C | PNP | Audio power | TO-3PN | -100 | -100 | -5 | -25 | 150 |
| 2SC2073 | NPN | Audio power | TO-220AB | 150 | 150 | 5 | 1.5 | 150 |
| 2SA940 | PNP | Audio power | TO-220AB | -150 | -150 | -5 | -1.5 | 150 |
Samples and selection
Request datasheets or catalog samples via the sample / inquiry channel. Browse the product catalog or cross-reference tool.
