Overview
MHCHXM has released near-zero temperature-coefficient fast-recovery diodes at 650 V and 1200 V, with current ratings from 30 A to 100 A.
These epitaxial FRDs combine a high-voltage field-stop termination with lifetime control. In the circuit they freewheel, rectify, clamp or snub. By how VF moves with temperature, the family splits into negative, near-zero and positive coefficients.
On the near-zero parts, VF and Irrm change less from cold to hot, while reliability stays high. That is the version to parallel.
Characteristics
- Planar structure
- Ultrafast recovery
- Low reverse leakage
- Soft recovery
- Low stored charge
- Low leakage
- Near-zero temperature coefficient
- High reliability

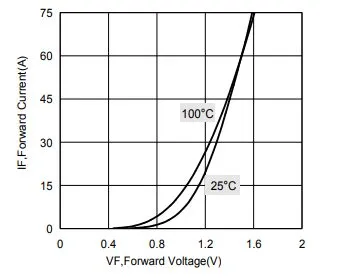

Near-zero coefficient: VF versus temperature

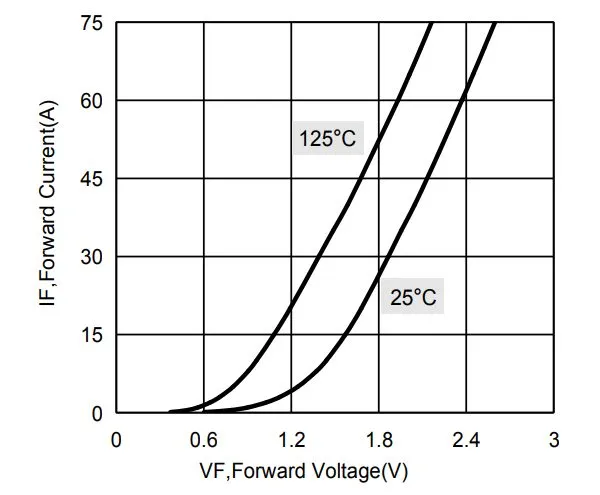

Negative coefficient: VF versus temperature
| Part | Type | VF at IF, 25°C (V) | VF at IF, 100°C (V) | TC (mV/°C) |
|---|---|---|---|---|
| EFP7512A | Near-zero TC | 1.57 | 1.6074 | -0.5 |
| SFP7512A | Negative TC | 2.34 | 2 | -3 |
Comparison
| FRD type | Negative TC | Near-zero TC |
|---|---|---|
| Die process | Planar | Planar |
| Junction temperature | 175°C | 150°C |
| VF versus temperature | VF falls as temperature rises, about 2–3 mV/°C | VF barely moves as temperature rises, about 0.5 mV/°C |
| Leakage IRRM | IRRM changes more with temperature | IRRM changes less with temperature |
| Forward VF | Higher VF | Lower VF, better forward parameters |
| Reverse recovery | Smaller trr, better reverse parameters | Larger trr |
| Where it is used | Higher-frequency circuits | Circuits that parallel devices |

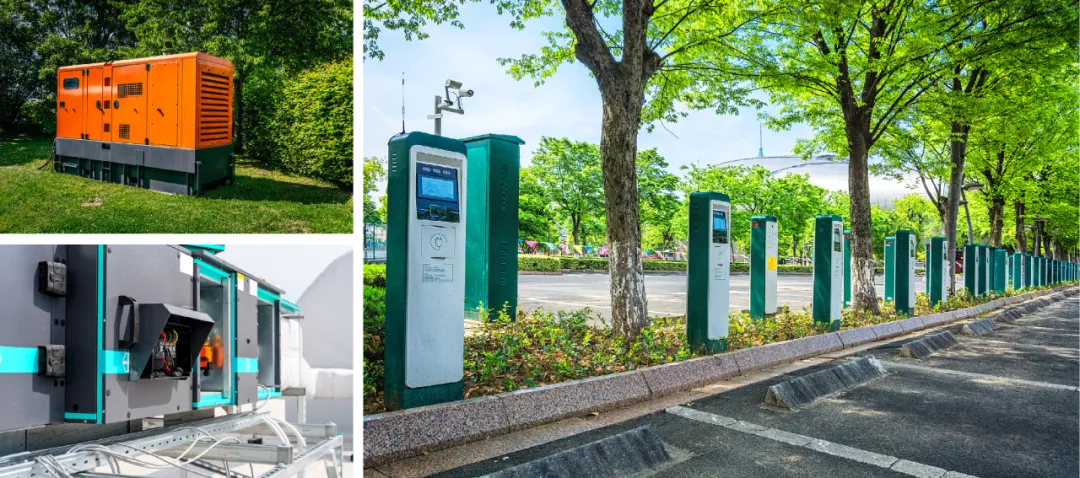

Target applications
- EV chargers
- Inverters and variable-frequency drives
- Motor control
Recommended parts
| Part | Package | VRRM (V) | IF (A) | IFSM (A) | Rated IF (A) | VF (V) | IR (µA) | trr (ns) | TJ max (°C) |
|---|---|---|---|---|---|---|---|---|---|
| EFP3065A | TO-247AC-A | 650 | 30 | 220 | 30 | 1.8 | 10 | 95 | 150 |
| EFP6065A | TO-247AC-A | 650 | 60 | 400 | 60 | 1.8 | 10 | 105 | 150 |
| EFP5012A | TO-247AC-A | 1200 | 50 | 400 | 50 | 1.85 | 10 | 200 | 150 |
| EFP7512A | TO-247AC-A | 1200 | 75 | 500 | 75 | 1.85 | 10 | 220 | 150 |
Beyond the parts above, the MHCHXM lineup also includes SiC diodes, SiC MOSFETs, MOSFETs, Schottky diodes, fast-recovery diodes, rectifier diodes and power transistors. The portfolio is refreshed on a regular cadence.
Samples and selection
Request datasheets or catalog samples via the sample / inquiry channel. Browse the product catalog or cross-reference tool.
