Overview
The third-generation SiC MOSFET family is offered in TO-252, TO-247, TO-220, TO-263M, TO-263 and TO-220F.
Blocking voltage, switching speed and temperature headroom are all higher than a silicon part in the same job. In the system that shows up as lower loss, higher power density, room to raise frequency and junction temperature, lower EMI, and a smaller, cheaper power stage.
Voltage classes include 650 V and 1200 V. On-resistance runs from about 20 mΩ to 540 mΩ, and the parts are already in volume on the programs that need them.
Device characteristics
- Gate drive 15–18 V
- Lower on-resistance, and a faster body diode
- Lower Qg and capacitance, so switching loss stays small
System results
- Lower system cost
- Smaller system volume
- A simpler design
Why it is easier to design in
- Gate-oxide reliability
- Both switching loss and conduction loss stay low
- The gate drive can stay compatible with a silicon MOSFET or an IGBT
- Short-circuit and avalanche ratings have margin
How it compares

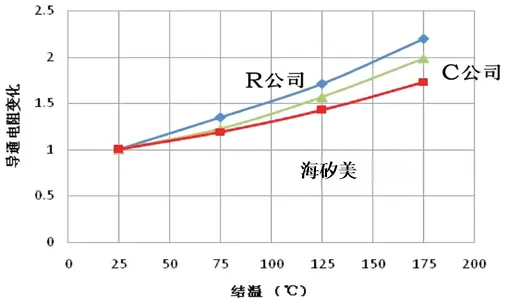

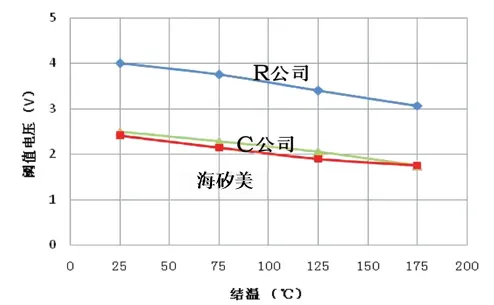

Against common devices from international suppliers, the advantages that show up first are on-resistance and threshold voltage. Both also move less as junction temperature rises.
Target applications
- On-board OBC and DC-DC
- Renewable generation and storage
- Server and telecom power
- LED supplies, USB-PD fast charge, adapters and auxiliary rails
- Motor drives
- EV chargers and inverters
Recommended parts
| Part | Package | Polarity | VDSS (V) | ID (A) | VGS(th) min (V) | VGS(th) max (V) | RDS(on) typ @15V (mΩ) | RDS(on) max @15V (mΩ) | RDS(on) typ @18V (mΩ) | RDS(on) max @18V (mΩ) | Qg typ (nC) | Ciss typ (pF) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXMC65N100S3 | TO-252-2L | N | 650 | 28 | 2.4 | 4 | 130 | 200 | 100 | 150 | 18.9 | 522 |
| HXMC65N160S3 | TO-252-2L | N | 650 | 17 | 2.4 | 4 | 190 | 268 | 160 | 220 | 12.6 | 448 |
| HXMC65N300S3 | TO-252-2L | N | 650 | 10 | 2.4 | 4 | 380 | 530 | 300 | 420 | 6.3 | 224 |
| HXMC65N100F3 | ITO-220AB | N | 650 | 28 | 2.4 | 4 | 130 | 200 | 100 | 150 | 18.9 | 522 |
| HXMC65N160F3 | ITO-220AB | N | 650 | 17 | 2.4 | 4 | 190 | 268 | 160 | 220 | 12.6 | 448 |
| HXMC65N300F3 | ITO-220AB | N | 650 | 10 | 2.4 | 4 | 380 | 530 | 300 | 420 | 6.3 | 224 |
| HXMC65N100H3 | TO-220AB | N | 650 | 28 | 2.4 | 4 | 130 | 200 | 100 | 150 | 18.9 | 522 |
| HXMC65N160H3 | TO-220AB | N | 650 | 17 | 2.4 | 4 | 190 | 268 | 160 | 220 | 12.6 | 448 |
| HXMC65N300H3 | TO-220AB | N | 650 | 10 | 2.4 | 4 | 380 | 530 | 300 | 420 | 6.3 | 224 |
| HXMC65N300D3 | TO-263-2L | N | 650 | 10 | 2.4 | 4 | 380 | 530 | 300 | 420 | 6.3 | 224 |
| HXMC65N100P3 | TO-247AB | N | 650 | 28 | 2.4 | 4 | 130 | 200 | 100 | 150 | 18.9 | 522 |
| HXMC65N70S1 | TO-252-2L | N | 650 | 60 | 2.7 | 4.5 | 90 | 120 | 65 | 90 | 41 | 1040 |
| HXMC65N90S1 | TO-252-2L | N | 650 | 28 | 2.7 | 4.5 | 125 | 170 | 93 | 130 | 33 | 739 |
| HXMC65N130S1 | TO-252-2L | N | 650 | 20 | 2.7 | 4.5 | 190 | 250 | 130 | 190 | 28.6 | 491 |
| HXMC65N190S1 | TO-252-2L | N | 650 | 16 | 2.7 | 4.5 | 260 | 330 | 190 | 220 | 25 | 375 |
| HXMC65N250S1 | TO-252-2L | N | 650 | 11 | 2.7 | 4.5 | 380 | 500 | 250 | 380 | 21.3 | 254 |
| HXMC65N70F1 | ITO-220AB | N | 650 | 60 | 2.7 | 4.5 | 90 | 120 | 65 | 90 | 41 | 1040 |
| HXMC65N90F1 | ITO-220AB | N | 650 | 28 | 2.7 | 4.5 | 125 | 170 | 93 | 130 | 33 | 739 |
| HXMC65N130F1 | ITO-220AB | N | 650 | 20 | 2.7 | 4.5 | 190 | 250 | 130 | 190 | 28.6 | 491 |
| HXMC65N190F1 | ITO-220AB | N | 650 | 16 | 2.7 | 4.5 | 260 | 330 | 190 | 220 | 25 | 375 |
| HXMC65N250F1 | ITO-220AB | N | 650 | 11 | 2.7 | 4.5 | 380 | 500 | 250 | 380 | 21.3 | 254 |
| HXMC65N70H1 | TO-220AB | N | 650 | 60 | 2.7 | 4.5 | 90 | 120 | 65 | 90 | 41 | 1040 |
| HXMC65N130H1 | TO-220AB | N | 650 | 20 | 2.7 | 4.5 | 190 | 250 | 130 | 190 | 28.6 | 491 |
| HXMC65N250H1 | TO-220AB | N | 650 | 11 | 2.7 | 4.5 | 380 | 500 | 250 | 380 | 21.3 | 254 |
| HXMC65N130D1 | TO-263-2L | N | 650 | 20 | 2.7 | 4.5 | 190 | 250 | 130 | 190 | 28.6 | 491 |
| HXMC65N250D1 | TO-263-2L | N | 650 | 11 | 2.7 | 4.5 | 380 | 500 | 250 | 380 | 21.3 | 254 |
| HXMC65N20P1 | TO-247AB | N | 650 | 120 | 2.7 | 4.5 | 30 | 50 | 20 | 30 | 125 | 3200 |
| HXMC65N70P1 | TO-247AB | N | 650 | 60 | 2.7 | 4.5 | 90 | 120 | 65 | 90 | 41 | 1040 |
| HXMC65N90P1 | TO-247AB | N | 650 | 28 | 2.7 | 4.5 | 125 | 170 | 93 | 130 | 33 | 739 |
| HXMC80N70S1 | TO-252-2L | N | 800 | 60 | 2.7 | 4.5 | 90 | 120 | 65 | 90 | 41 | 1040 |
| HXMC80N90S1 | TO-252-2L | N | 800 | 28 | 2.7 | 4.5 | 125 | 170 | 93 | 130 | 33 | 739 |
| HXMC80N130S1 | TO-252-2L | N | 800 | 20 | 2.7 | 4.5 | 190 | 250 | 130 | 190 | 28.6 | 491 |
| HXMC80N250S1 | TO-252-2L | N | 800 | 11 | 2.7 | 4.5 | 380 | 500 | 250 | 380 | 21.3 | 254 |
| HXMC80N70F1 | ITO-220AB | N | 800 | 60 | 2.7 | 4.5 | 90 | 120 | 65 | 90 | 41 | 1040 |
| HXMC80N90F1 | ITO-220AB | N | 800 | 28 | 2.7 | 4.5 | 125 | 170 | 93 | 130 | 33 | 739 |
| HXMC80N130F1 | ITO-220AB | N | 800 | 20 | 2.7 | 4.5 | 190 | 250 | 130 | 190 | 28.6 | 491 |
| HXMC80N250F1 | ITO-220AB | N | 800 | 11 | 2.7 | 4.5 | 380 | 500 | 250 | 380 | 21.3 | 254 |
| HXMC80N70H1 | TO-220AB | N | 800 | 60 | 2.7 | 4.5 | 90 | 120 | 65 | 90 | 41 | 1040 |
| HXMC80N130H1 | TO-220AB | N | 800 | 20 | 2.7 | 4.5 | 190 | 250 | 130 | 190 | 28.6 | 491 |
| HXMC80N250H1 | TO-220AB | N | 800 | 11 | 2.7 | 4.5 | 380 | 500 | 250 | 380 | 21.3 | 254 |
| HXMC80N130D1 | TO-263-2L | N | 800 | 20 | 2.7 | 4.5 | 190 | 250 | 130 | 190 | 28.6 | 491 |
| HXMC80N250D1 | TO-263-2L | N | 800 | 11 | 2.7 | 4.5 | 380 | 500 | 250 | 380 | 21.3 | 254 |
| HXMC80N20P1 | TO-247AB | N | 800 | 120 | 2.7 | 4.5 | 30 | 50 | 20 | 30 | 125 | 3200 |
| HXMC80N70P1 | TO-247AB | N | 800 | 60 | 2.7 | 4.5 | 90 | 120 | 65 | 90 | 41 | 1040 |
| HXMC80N90P1 | TO-247AB | N | 800 | 28 | 2.7 | 4.5 | 125 | 170 | 93 | 130 | 33 | 739 |
| HXMC120N240S2 | TO-252-2L | N | 1200 | 12.8 | 2 | 4 | 295 | 380 | 240 | 312 | 17.5 | 481 |
| HXMC120N240F2 | ITO-220AB | N | 1200 | 12.8 | 2 | 4 | 295 | 380 | 240 | 312 | 17.5 | 481 |
Beyond the parts above, the MHCHXM lineup also includes SiC diodes, MOSFETs, Schottky diodes, fast-recovery diodes and power transistors. The portfolio is refreshed on a regular cadence.
Samples and selection
Request datasheets or catalog samples via the sample / inquiry channel. Browse the product catalog or cross-reference tool.
