Phone fast chargers, electric vehicles, brushless motors and portable storage have raised demand for low- and mid-voltage MOSFETs. SGT devices are the usual choice in fast charge, motor drives and power management.
The MHCHXM SGT family uses a shielded-gate trench. The cell and the trench are arranged so specific on-resistance Rsp (Rds(on) times die area) comes down. In a dense package such as PDFN or TO-263M, the same outline then delivers more power. The shield also cuts Qg and Qrr, so turn-off loss and current spikes are smaller and the system is steadier. The input-capacitance ratio is set so Miller coupling is less likely to pull the gate through, which lowers shoot-through risk.
Characteristics
- Low Rsp, so power density is higher
- Low FOM (Rds(on) × Qg), so switching loss is lower
- Low Qrr, so turn-off loss is lower
- Low Irrm, so turn-off voltage stress is lower
- More avalanche and surge headroom
Applications

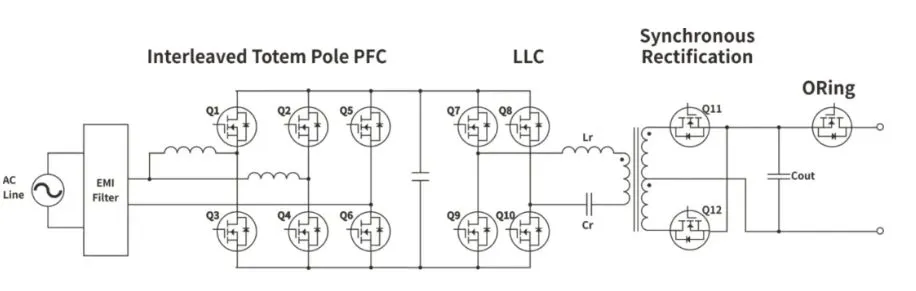

Typical server topology
Recommended parts
These are current PDFN5060-8L options. RDS(on) is at VGS = 10 V.
| Part | Process | Package | Polarity | Vdss (V) | ID (A) | VGS (V) | VGS(th) min | VGS(th) typ | VGS(th) max | RDS(on) typ (mΩ) | RDS(on) max (mΩ) | Qg typ (nC) | Ciss typ (pF) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HXMS30N15LNA | SGT | PDFN5060-8L | N | 30 | 190 | ±20 | 1 | 1.6 | 2.2 | 1.15 | 1.45 | 44.3 | 2930 |
| HXMS40N55LNA | SGT | PDFN5060-8L | N | 40 | 60 | ±20 | 1 | 1.55 | 2.5 | 4.5 | 5.5 | 17 | 948 |
| HXMS40N12LNA | SGT | PDFN5060-8L | N | 40 | 260 | ±20 | 1.1 | 1.7 | 2.4 | 1.12 | 1.25 | 125 | 6200 |
| HXMS40N11HNA | SGT | PDFN5060-8L | N | 40 | 260 | ±20 | 2 | 2.9 | 3.5 | 0.86 | 1.05 | 105 | 5200 |
| HXMS100N79LNA | SGT | PDFN5060-8L | N | 100 | 75 | ±20 | 1.5 | 2 | 2.5 | 6.5 | 7.9 | 41 | 2200 |
| HXMS100N50LNA | SGT | PDFN5060-8L | N | 100 | 130 | ±20 | 1.5 | 2 | 2.5 | 4.5 | 5 | 60 | 3623 |
Beyond the parts above, the MHCHXM lineup also includes SiC diodes, MOSFETs, Schottky diodes, fast-recovery diodes and power transistors. The portfolio is refreshed on a regular cadence.
Samples and selection
Request datasheets or catalog samples via the sample / inquiry channel. Browse the product catalog or cross-reference tool.
